转接板
在此写入描述

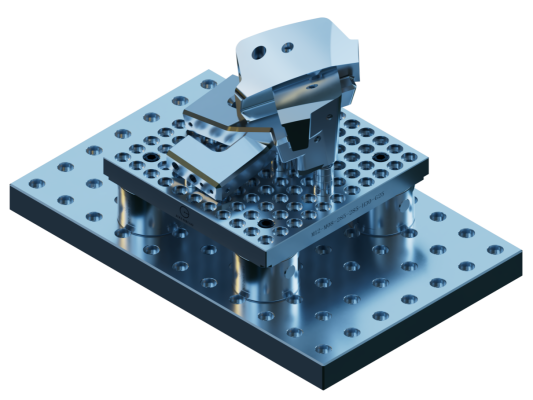

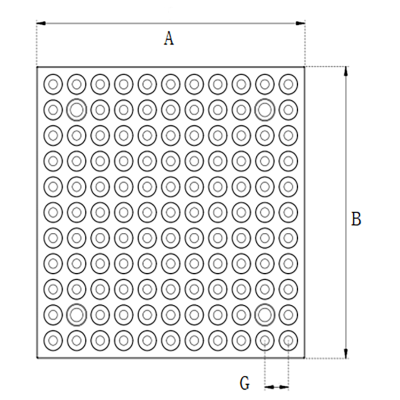

转接板-A/B/C
| 名称 | 编号 | 长度A | 宽度B | 孔间距G |
|---|---|---|---|---|
| M12-M08转接板-A1 | M12-M08-285-285-H30-G25 | 285mm | 285mm | 25mm |
| M12-M08转接板-A2 | M12-M08-285-135-H30-G25 | 285mm | 135mm | 25mm |
| M12-M06转接板-B1 | M12-M06-235-135-H30-G25 | 235mm | 135mm | 25mm |
| M12-M06转接板-B2 | M12-M06-135-135-H30-G25 | 135mm | 135mm | 25mm |
| M12-M06转接板-C1 | M12-M06-235-115-H30-G15 | 235mm | 115mm | 15mm |
| M12-M06转接板-C2 | M12-M06-115-115-H30-G15 | 115mm | 115mm | 15mm |
转接板
| 名称 | 编号 | 长度A | 宽度B | 孔间距G |
|---|---|---|---|---|
| M12-M12转接板 | M12-M12-135-085-H60 | 135mm | 135mm | 50mm |
| M16-M12转接板 | M16-M12-135-085-H70 | 85mm | 85mm | 50mm |
