Adapter Locator Pallet
在此写入描述

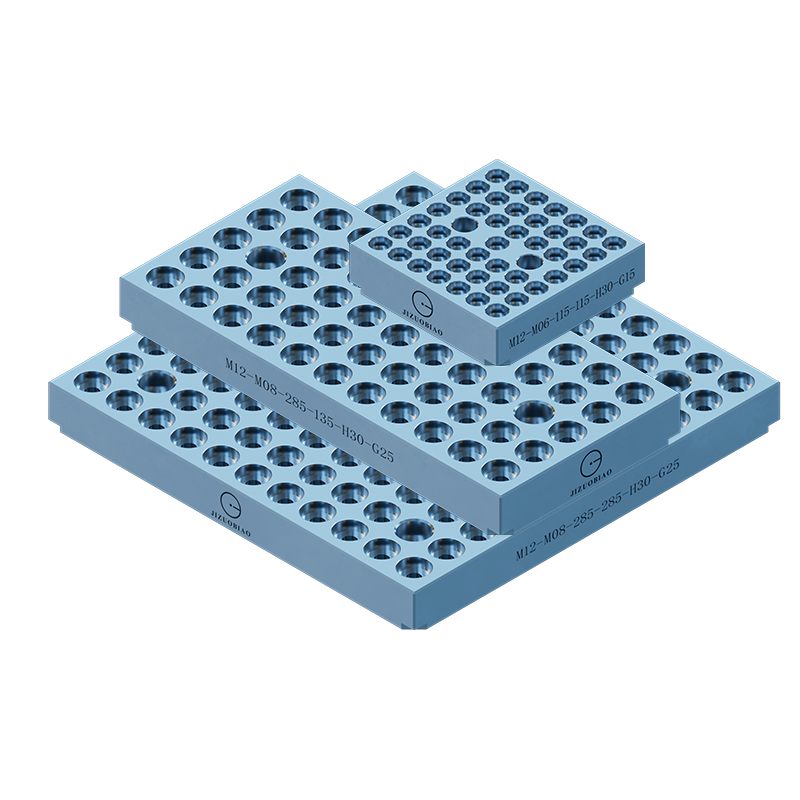

Adapter Locator Pallet-A/B/C

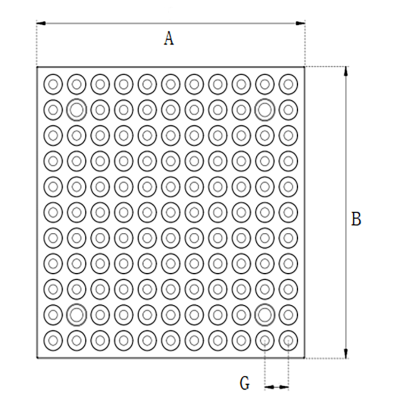

| Name | ID | Length (A) | Width (B) | Distance of Holes |
|---|---|---|---|---|
| M12-M08 Adapter Locator Pallet-A1 | M12-M08-285-285-H30-G25 | 285mm | 285mm | 25mm |
| M12-M08 Adapter Locator Pallet-A2 | M12-M08-285-135-H30-G25 | 285mm | 135mm | 25mm |
| M12-M06 Adapter Locator Pallet-B1 | M12-M06-235-135-H30-G25 | 235mm | 135mm | 25mm |
| M12-M06 Adapter Locator Pallet-B2 | M12-M06-135-135-H30-G25 | 135mm | 135mm | 25mm |
| M12-M06 Adapter Locator Pallet-C1 | M12-M06-235-115-H30-G15 | 235mm | 115mm | 15mm |
| M12-M06 Adapter Locator Pallet-C2 | M12-M06-115-115-H30-G15 | 115mm | 115mm | 15mm |
Adapter Locator Pallet
| Name | ID | Length (A) | Width (B) | Distance of Holes |
|---|---|---|---|---|

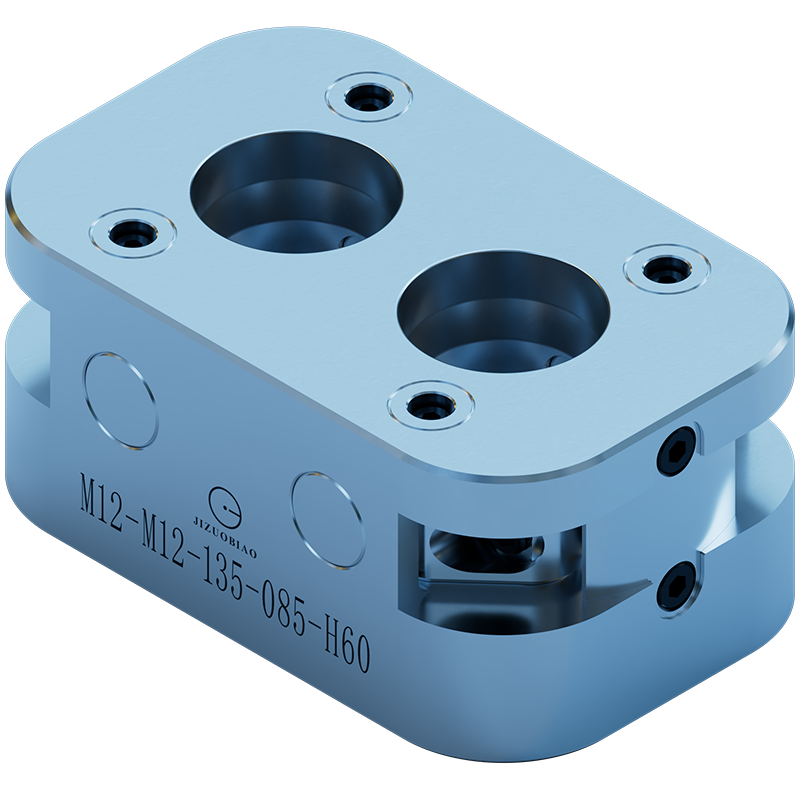

| M12-M12 Adapter Locator Pallet | M12-M12-135-085-H60 | 135mm | 135mm | 50mm |
| M16-M12 Adapter Locator Pallet | M16-M12-135-085-H70 | 85mm | 85mm | 50mm |
