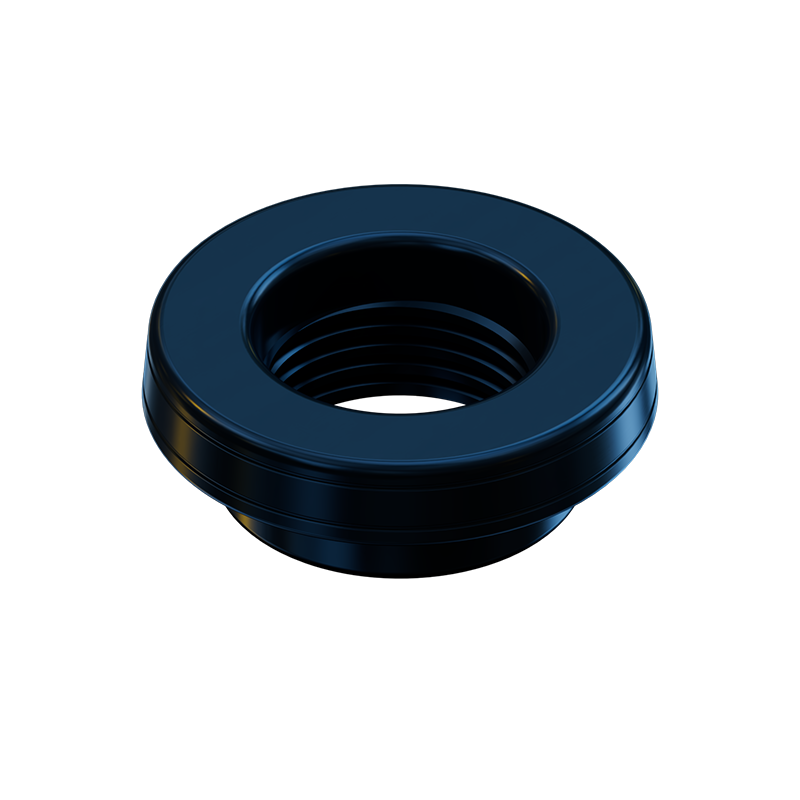

Locating Ring

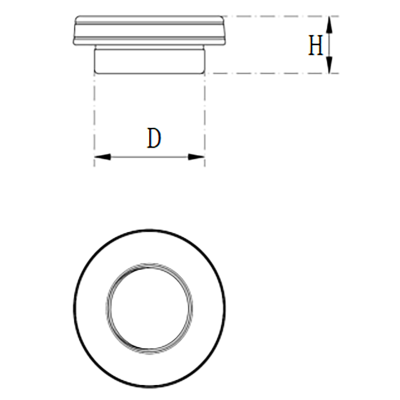

Name | ID | Outer Diameter (D) | Height (H) |
|---|---|---|---|
M08 Locating Ring | M08-D16-H10 | 16mm | 10mm |
M12 Locating Ring | M12-D20-H10 | 20mm | 10mm |
M16 Locating Ring | M16-D24-H12 | 24mm | 12mm |
Applications
Used to connect the support A and locater pallet.. Small volume and is convenient to install.
Suitable for the connection between part and spacer.
