Rivet
在此写入描述

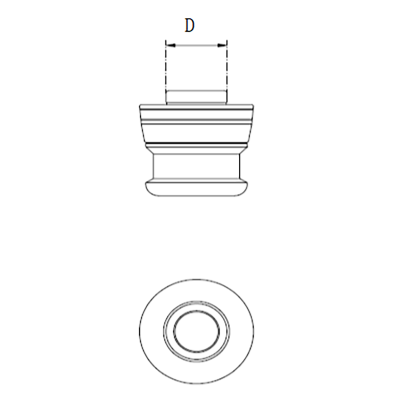

Rivet-A0
Name | ID | Outer Diameter (D) | Torque | Shear Force |
|---|---|---|---|---|
M08-Rivet-A0 | M08-D16-H27 | 16mm | 50Nm | 25Kg |
M12-Rivet-A0 | M12-D20-H36 | 20mm | 180Nm | 500Kg |
M16-Rivet-A0 | M16-D24-H45 | 24mm | 400Nm | 800Kg |
Applications
Used to connect parts and support, connect locater pallet and support except for support A.
Rivet-A1
Name | ID | Outer Diameter (D) | Torque | Shear Force |
|---|---|---|---|---|
M08-Rivet-A1 | M08-D17-H27 | 17mm | 50Nm | 25Kg |
M12-Rivet-A1 | M12-D22-H36 | 22mm | 180Nm | 500Kg |
M16-Rivet-A1 | M16-D26-H45 | 26mm | 400Nm | 800Kg |
Applications
Used to connect the workpiece after heat treatment, on which the clamping hole fixed due to deformation.

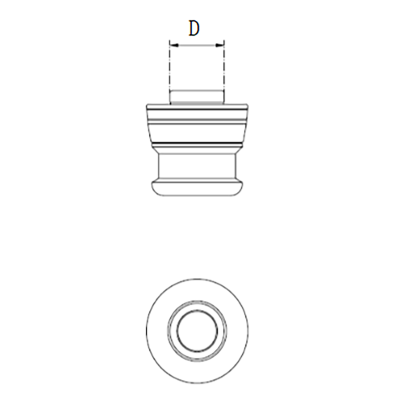

Rivet-A2
Name | ID | Outer Diameter (D) | Torque | Shear Force |
|---|---|---|---|---|
M08-Rivet-A2 | M08-D15-H27 | 15mm | 50Nm | 25Kg |
M12-Rivet-A2 | M12-D19-H36 | 19mm | 180Nm | 500Kg |
M16-Rivet-A2 | M16-D23-H45 | 23mm | 400Nm | 800Kg |
Applications
Used to correct deformation caused by heat treatment.

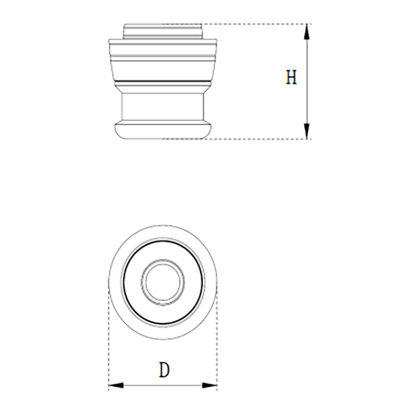

Rivet-B
| Name | ID | Outer Diameter (D) | Height (H) |
|---|---|---|---|
| M08-Rivet-B | M08-D30-H27 | 30mm | 27mm |
| M12-Rivet-B | M12-D36-H36 | 36mm | 36mm |
| M16-Rivet-B | M16-D45-H46 | 45mm | 45mm |
Applications
Used to connect two supporters

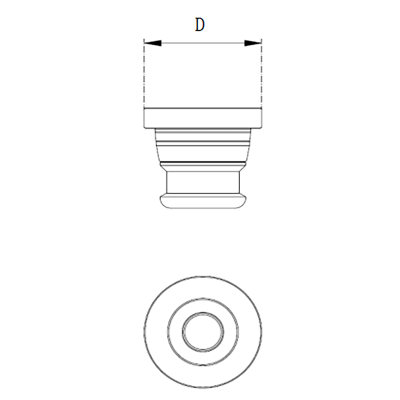

Rivet-C
| Name | ID | 外径D1 | 外径D2 | Torque | Shear Force |
|---|---|---|---|---|---|
| M08-Rivet-C | M08-D40-H32 | 40mm | 16mm | 50Nm | 25Kg |
| M12-Rivet-C | M12-D50-H41 | 50mm | 20mm | 180Nm | 500Kg |
| M16-Rivet-C | M16-D55-H49 | 55mm | 24mm | 400Nm | 800Kg |
Applications
Used to connect supporter and spacer.
Rivet Usage Instruction
