Support rod
Name | ID | A | B | C | L | L+L1 | Weight |
|---|---|---|---|---|---|---|---|
M12- Support Rod | M12-L850-1100 | 65mm | 80mm | ±5.0mm | 650-900mm | 850-1100mm | 17KG |

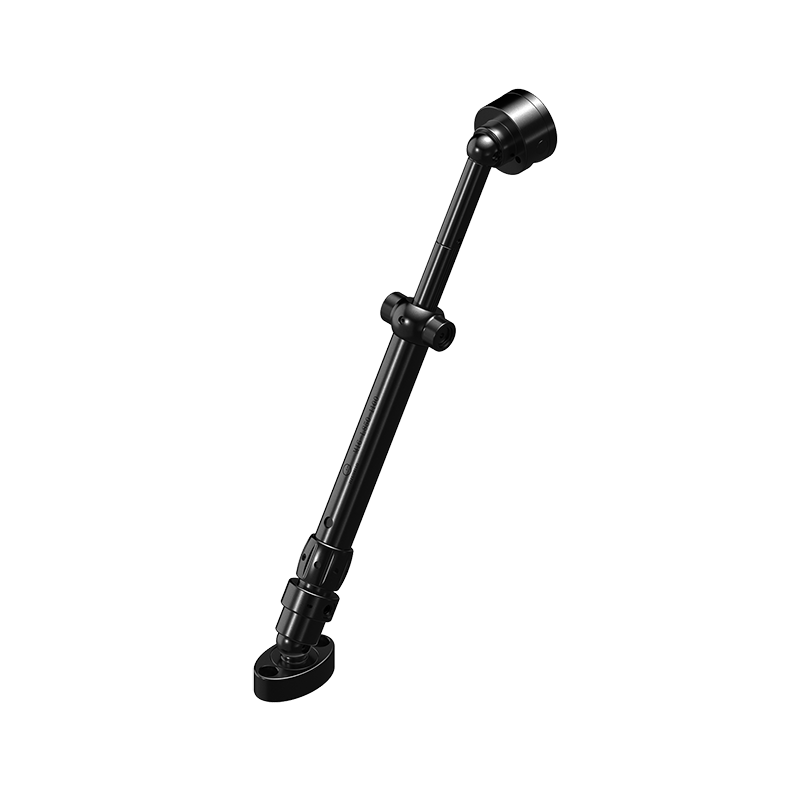

M16- Support Rod | M16-D105-H160 | 65mm | 90mm | ±5.0mm | 650-900mm | 850-1100mm | 18KG |

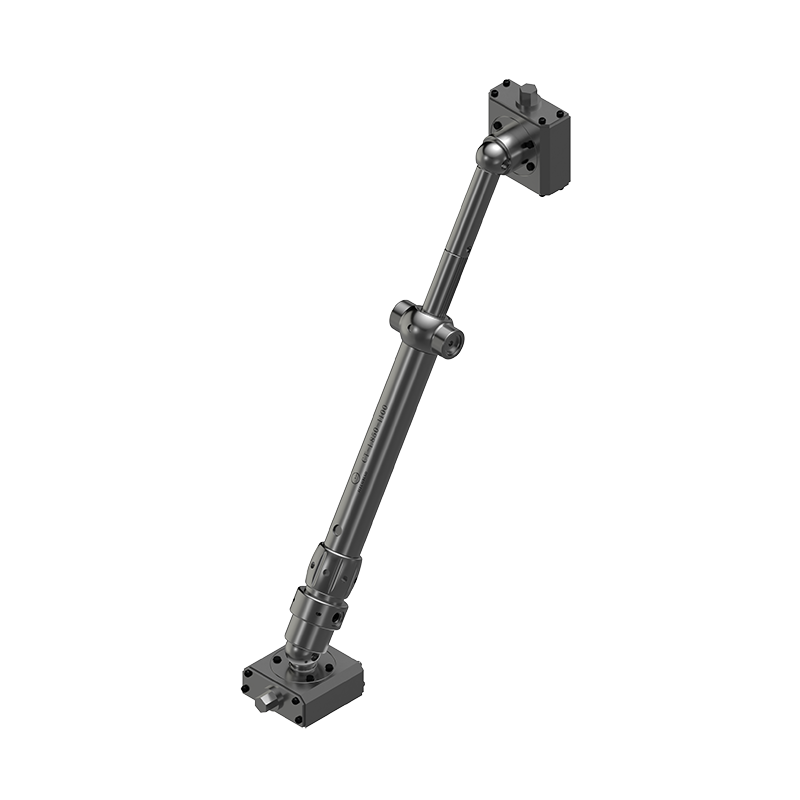

Magnetic Support Rod
| Name | ID | E | F | 磁力 | Weight |
|---|---|---|---|---|---|
| Magnetic Support Rod | CT-L850-1100 | 120mm | 120mm | 4200Nm | 22Kg |

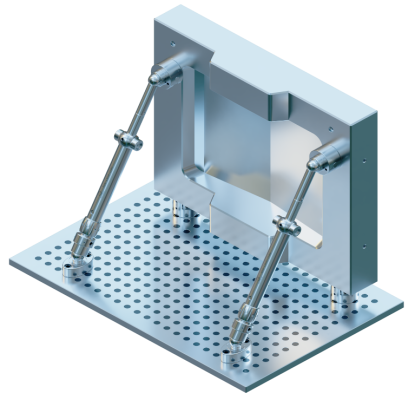

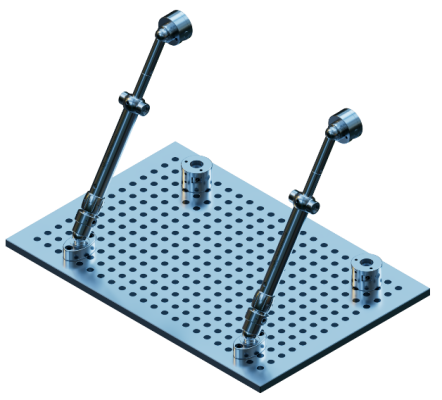

Applications
Widely used in horizontal machine.
Enable to replace traditional auxiliary workbenches, reduce the load on machine tools, and improve clamping efficiency.
The fine-tuning mechanism makes it easier to correct the machining surface angle of large workpieces during machining.
In the case that the clamping hole cannot be processed, the magnetic fixed end can be used for auxiliary support.
