Supporter
在此写入描述

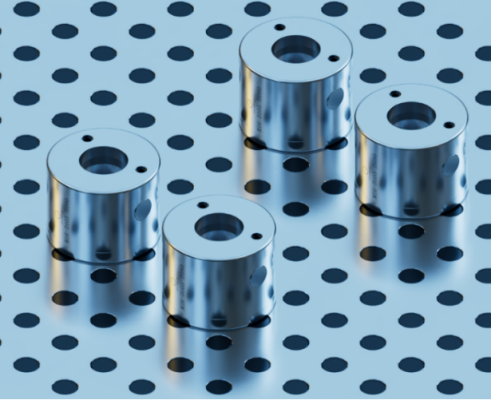

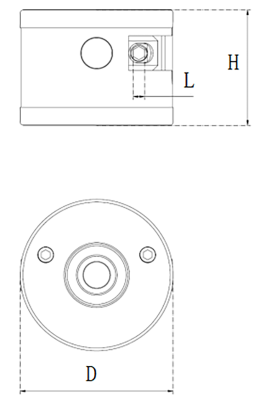

Supporter-A
Name | ID | Outer Diameter (D) | Height (H) | Hexagon Width (L) | Hexagon Torque | Weight |
|---|---|---|---|---|---|---|
M08 Supporter-A | M08-D075-H040 | 75mm | 40mm | 5mm | 12Nm | 1.3KG |
M12 Supporter-A | M12-D085-H060 | 85mm | 60mm | 6mm | 20Nm | 2.5KG |
M16 Supporter-A | M16-D105-H080 | 105mm | 80mm | 8mm | 45Nm | 5.0KG |
Applications
To reduce the height of the supporter and improve clamping rigidity and efficiency. Use a locking mechanism to connect the workpiece, and use bolts to secure to the locater pallet.
The locking mechanism can achieve the maximum locking force by making full use of the lever principle and pinch squeeze.
The positive and negative screw works with the bent arm lever, which can lock and release in very short stroke.

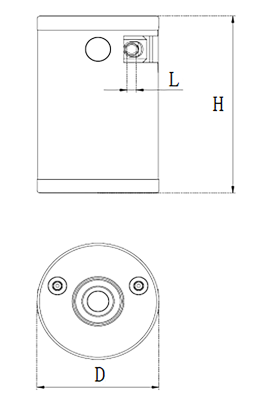

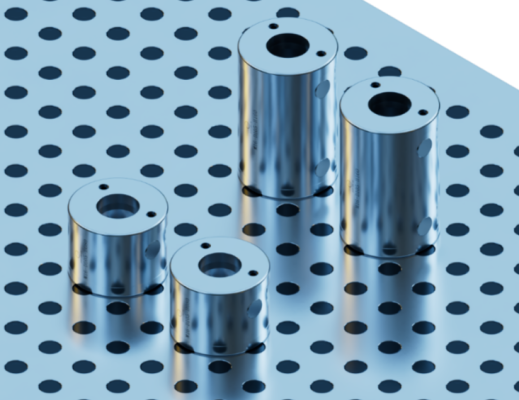

Supporter-B
Name | ID | Outer Diameter (D) | Height (H) | Hexagon Width (L) | Hexagon Torque | Weight |
|---|---|---|---|---|---|---|
M08 Supporter-B | M08-D075-H080 | 75mm | 80mm | 5mm | 12Nm | 2.2KG |
M12 Supporter-B | M12-D085-H120 | 85mm | 120mm | 6mm | 20Nm | 4.2KG |
M16 Supporter-B | M16-D105-H160 | 105mm | 160mm | 8mm | 45Nm | 8.5KG |
Applications

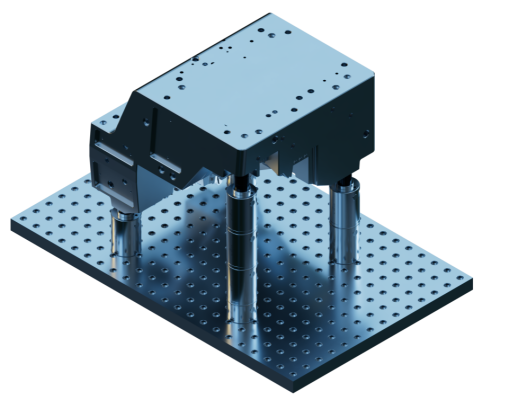

- Locking mechanism is used in both sides, which can achieve high hanging clamping, unequal height clamping and multi-layer stacked clamping.

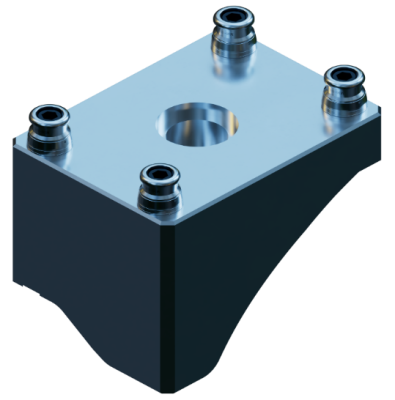

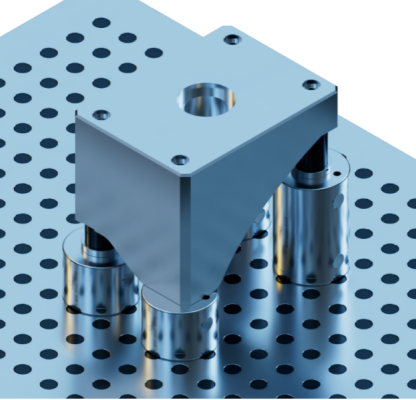

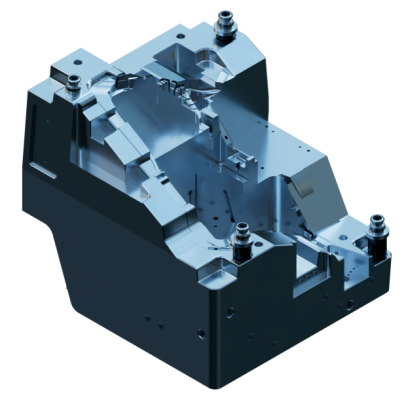

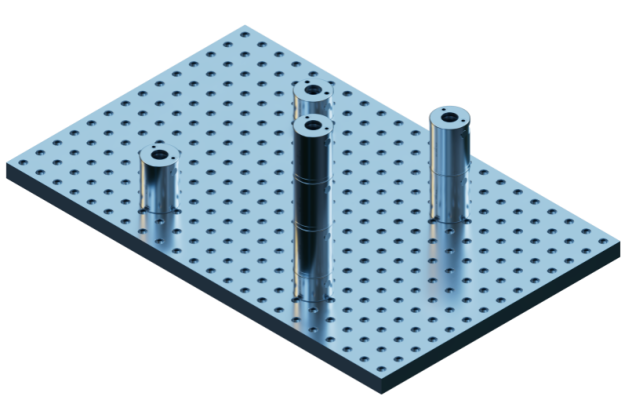

Supporter Module
- Pre-Clamping can be done by using Jizuobiao software.
By using Jizuobiao clamping software and hardware in sets, clamping coordinate, NC program coordinate and machine tool processing coordinate can be unified and it is not necessary to do center alignment. Processing begin just after tool setting.
- It is widely used in single production step or automatic production line, perfectly solving the clamping between workpiece and pallet (automatic production line), workpiece and the machine bed.

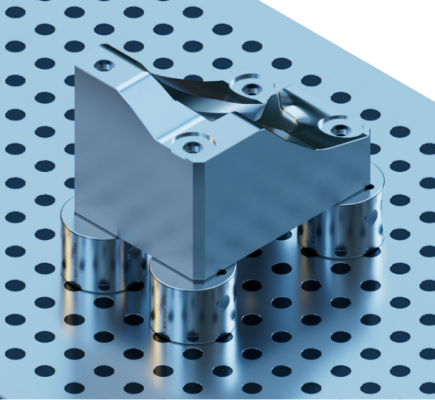

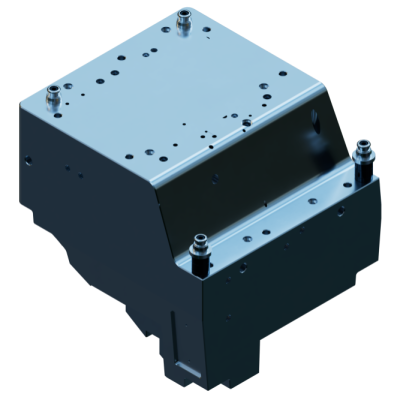

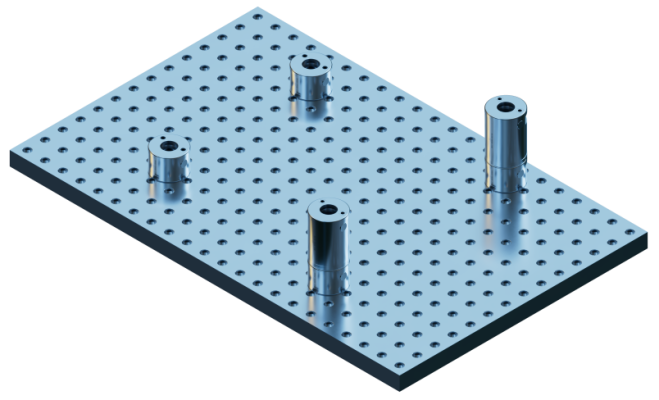

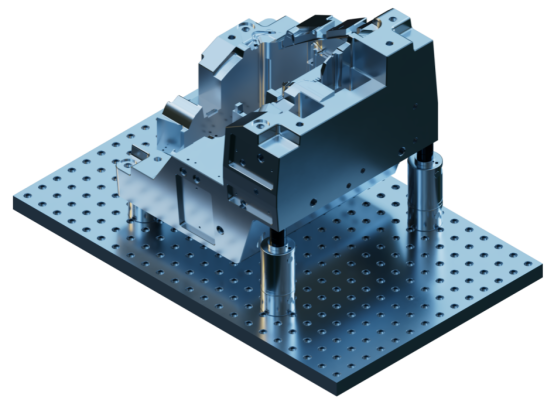

Supporter Module
- Pre-Clamping can be done by using Jizuobiao software.
By using Jizuobiao clamping software and hardware in sets, clamping coordinate, NC program coordinate and machine tool processing coordinate can be unified and it is not necessary to do center alignment. Processing begin just after tool setting.

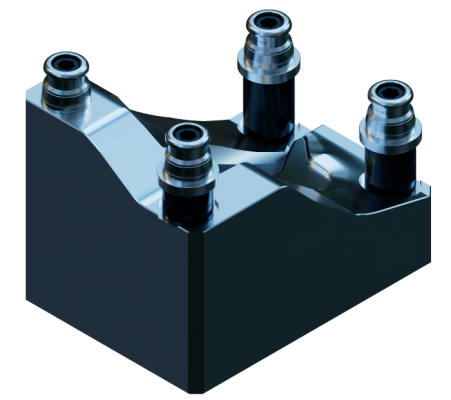

- It can be used in unequal height and irregularly shaped workpieces clamping.
