Vertical Locator Table
在此写入描述

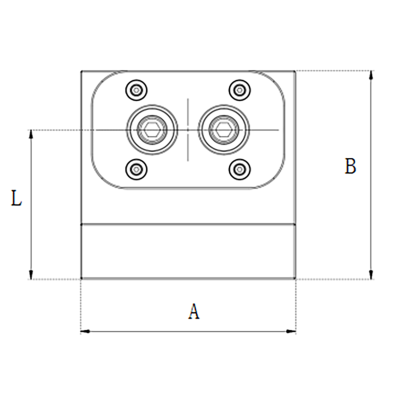

Vertical Locator Table-A
| Name | ID | Length (A) | Height (H) | Height of Center (L) | Weight |
|---|---|---|---|---|---|
| M12-Vertical Locator Table-A | M12-150-A | 150mm | 150mm | 105mm | 22Kg |
| M16-Vertical Locator Table-A | M16-150-A | 150mm | 150mm | 105mm | 22KG |

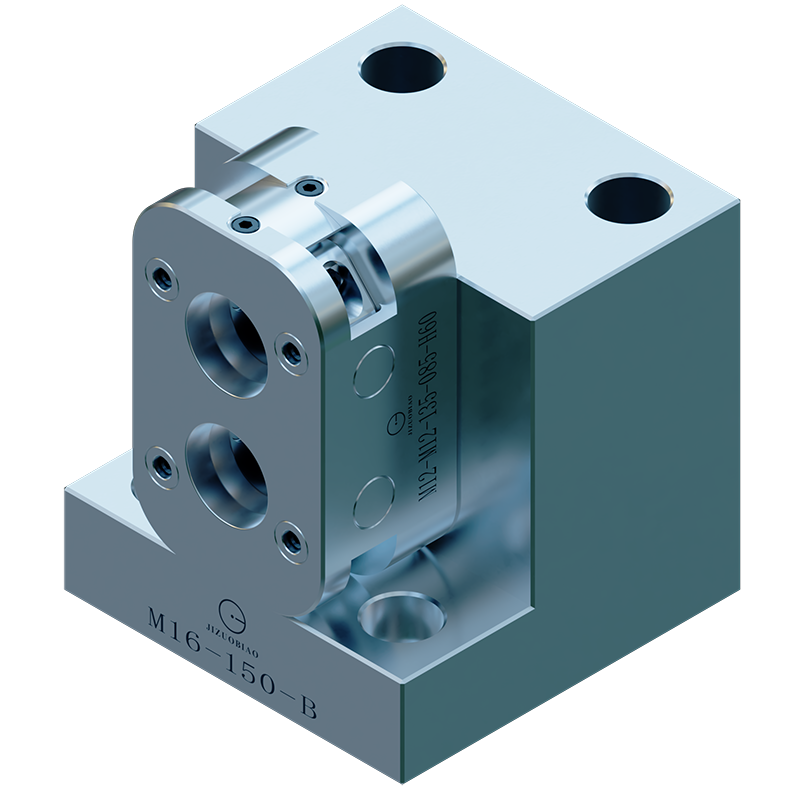

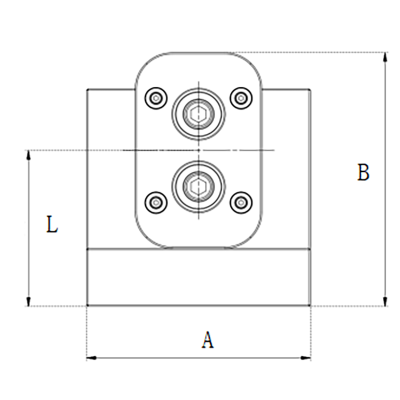

Vertical Locator Table-B
| Name | ID | Length (A) | Height (H) | Height of Center (L) | Weight |
|---|---|---|---|---|---|
| M12-Vertical Locator Table-B | M12-150-B | 150mm | 175mm | 105mm | 22Kg |
| M16-Vertical Locator Table-B | M16-150-B | 150mm | 175mm | 105mm | 22KG |
